GB6-182单针极厚料同步缝纫机



特点:

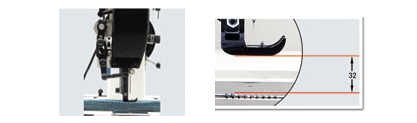

适合极厚料缝制物的缝制作业,尤为适合0号至00号的粗线缝制;采用连杆式天秤,获得平整均一的线迹;压脚配合下送料机构作同步提升,极厚的材料也能轻松送入;压脚膝控提升高度32mm,方便极厚缝制物通过;采用半回转大型摆梭,减少底线交换频度,提高作业效率;工作空间420mm,方便厚料大型缝制物的进出回转;针距12mm;配置调节简单的手柄式倒缝装置。
用途:适用于制鞋、沙发、集装袋、安全带、皮革、牛仔服、帐篷等粗线厚料制品。
Characteristics:
It is suitable for sewing thick material, especially for thick threads of No. 0 to No. 00.It adopts connecting rod tower crane, so it has smooth and even stitches. The feeding mechanism assorted with presser could lift synchronous, so it could sew super-thick material.The lifting height of knee control presser is 32mm, it is easy for super-thick material to pass.It adopts semi-rotative big oscillating shuttle, which could reduce the changing times of bobbin thread and improve the working efficiency.The working space is 420mm, which is convenient for thick and large sewing material pass and rotation.The maximum needle gauge 12mm Equipped with handle back sewing unit, which could be regulated simply.
Uses:Suitable for sewing of shoes, sofa, packing bags, safety belt and rents.
主要技术参数Main Parameters:

   针数 Needles
   单针 Single needle
   缝速高达 Max.Sewing speed
   700针/分 needles/min
   压脚提升 Presser food lift
 手提 By hand
   13毫米 mm
 膝控 By knee    32毫米 mm
   针杆行程 Needle bar stroke
   78毫米 mm
   机针 Needle size
   8×200/250/300
   摆梭 Oscillating shuttle
   半回转大型摆梭 semi-rotaive big oscillating shuttle
   压脚交替上升量 Aiternating lifting distance of presser
   5~7毫米(标准6毫米) 5~7mm(Standard 6mm)
   润滑方式 Lubrication
   手动润滑 Manual
   作业空间 Operating room
   420×230毫米 mm
   电机 Motor
   550W 1400转/分 r.p.m
   机头重量 Machine head weight
   105kg kg
